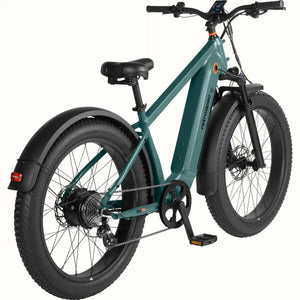

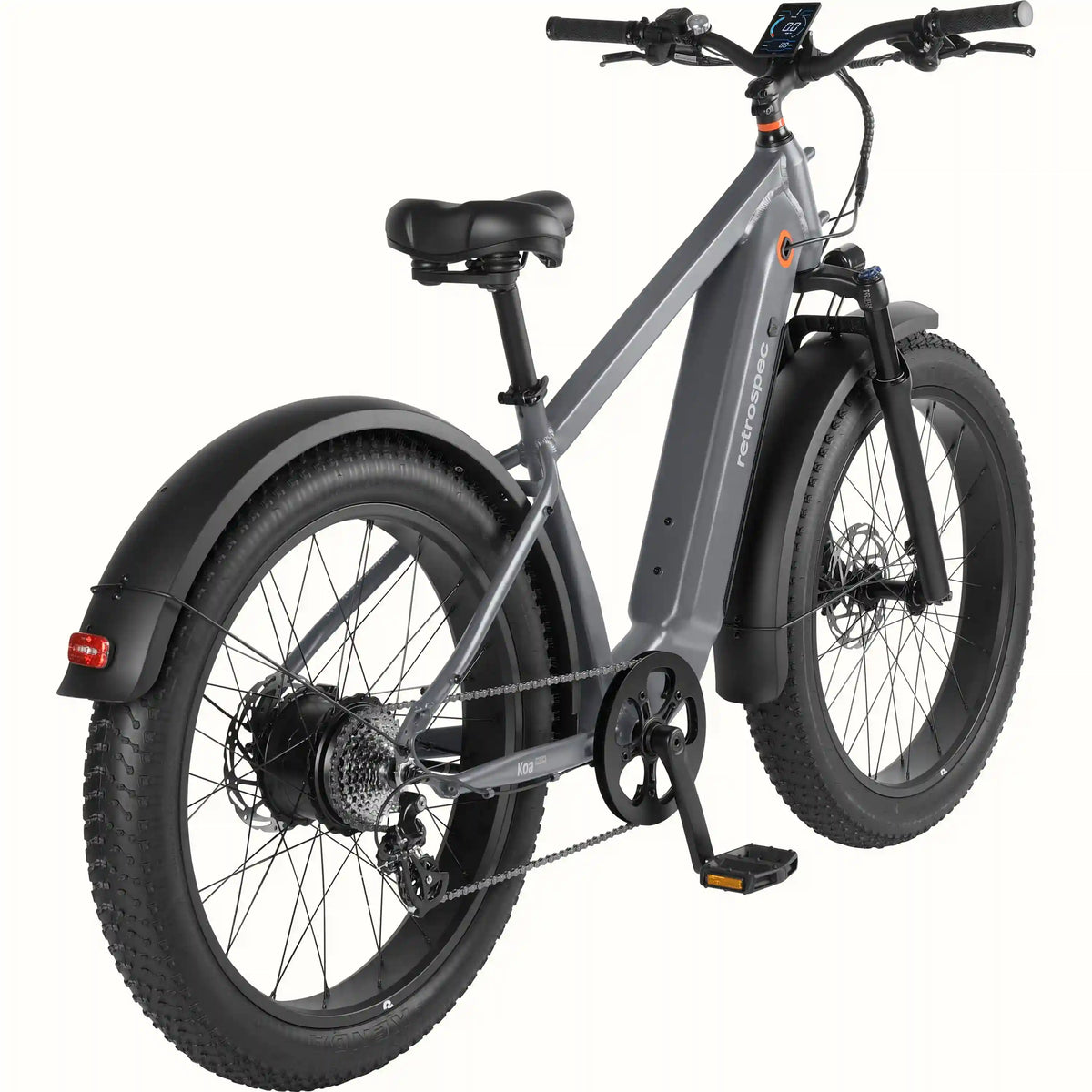

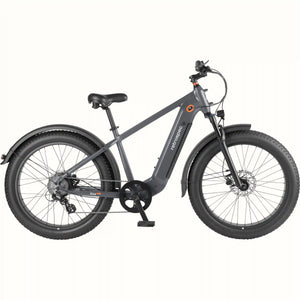

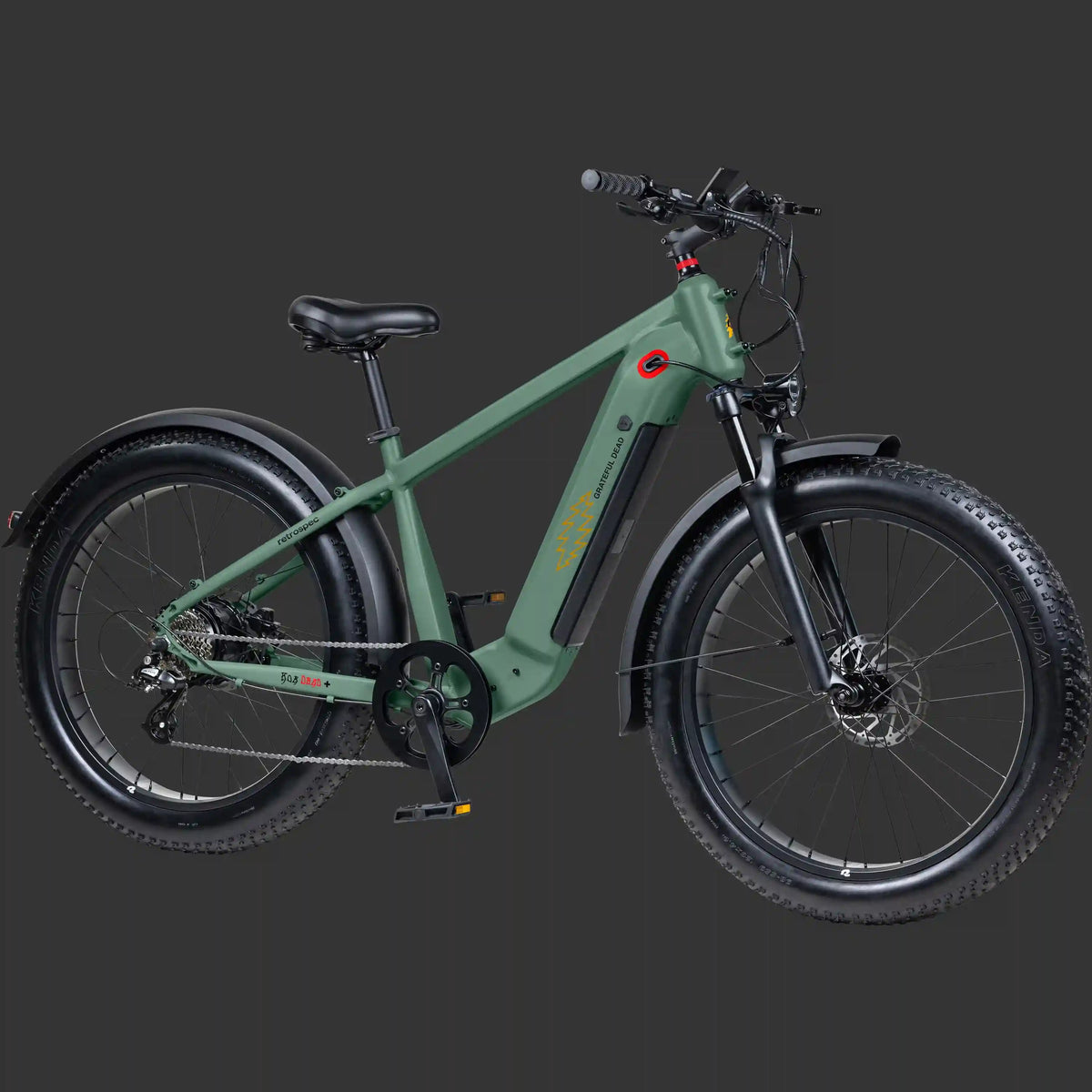

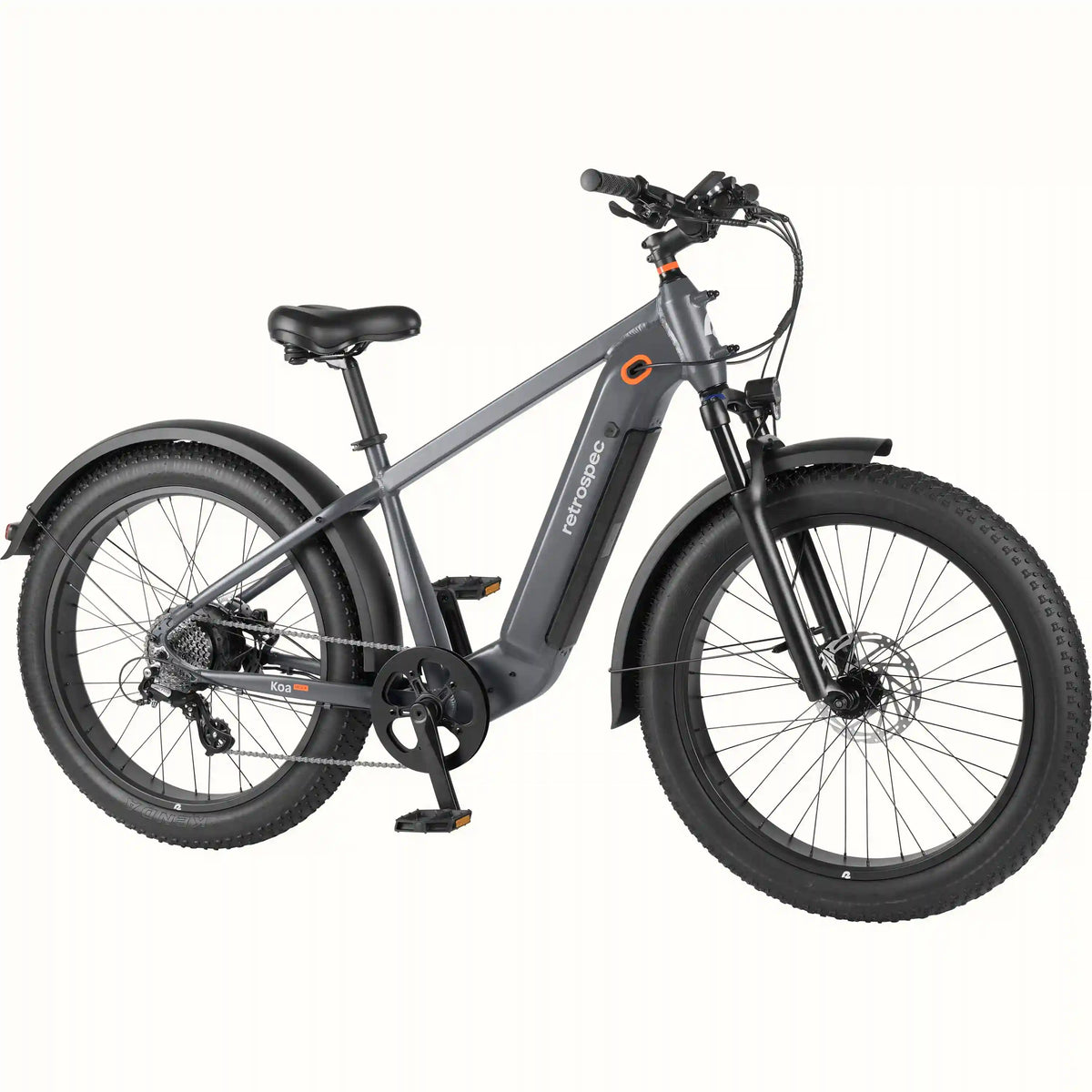

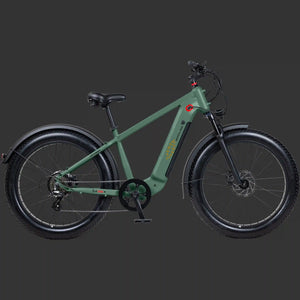

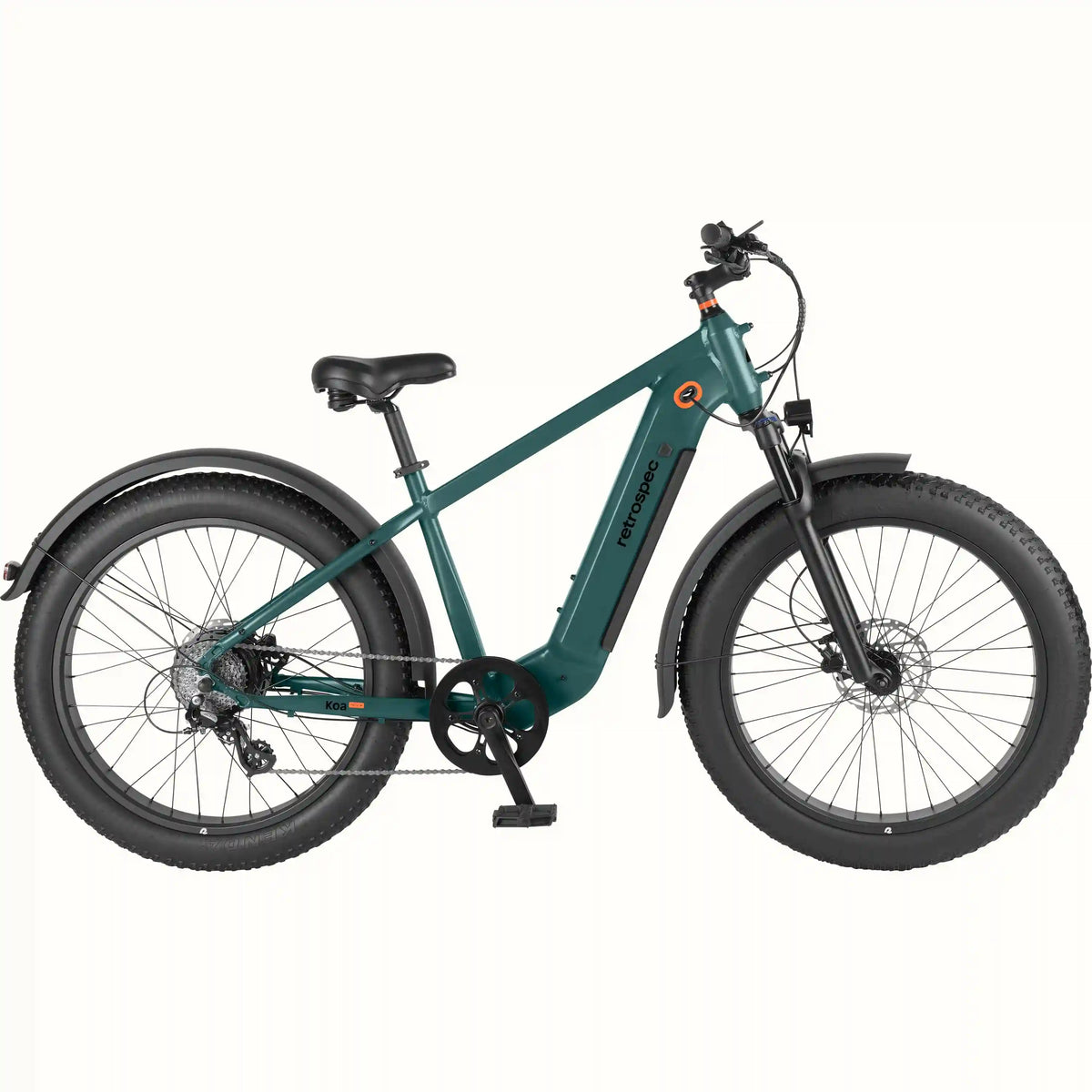

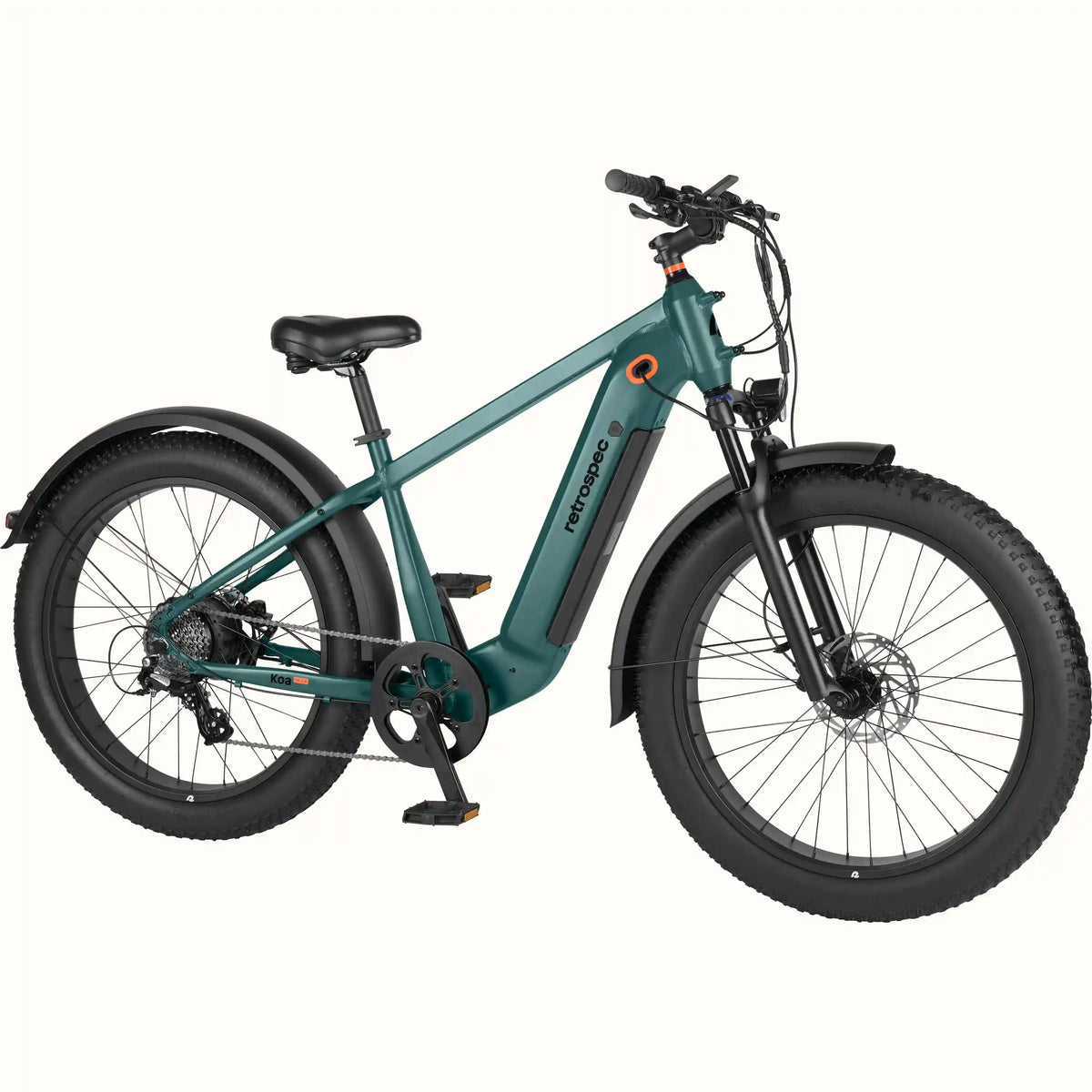

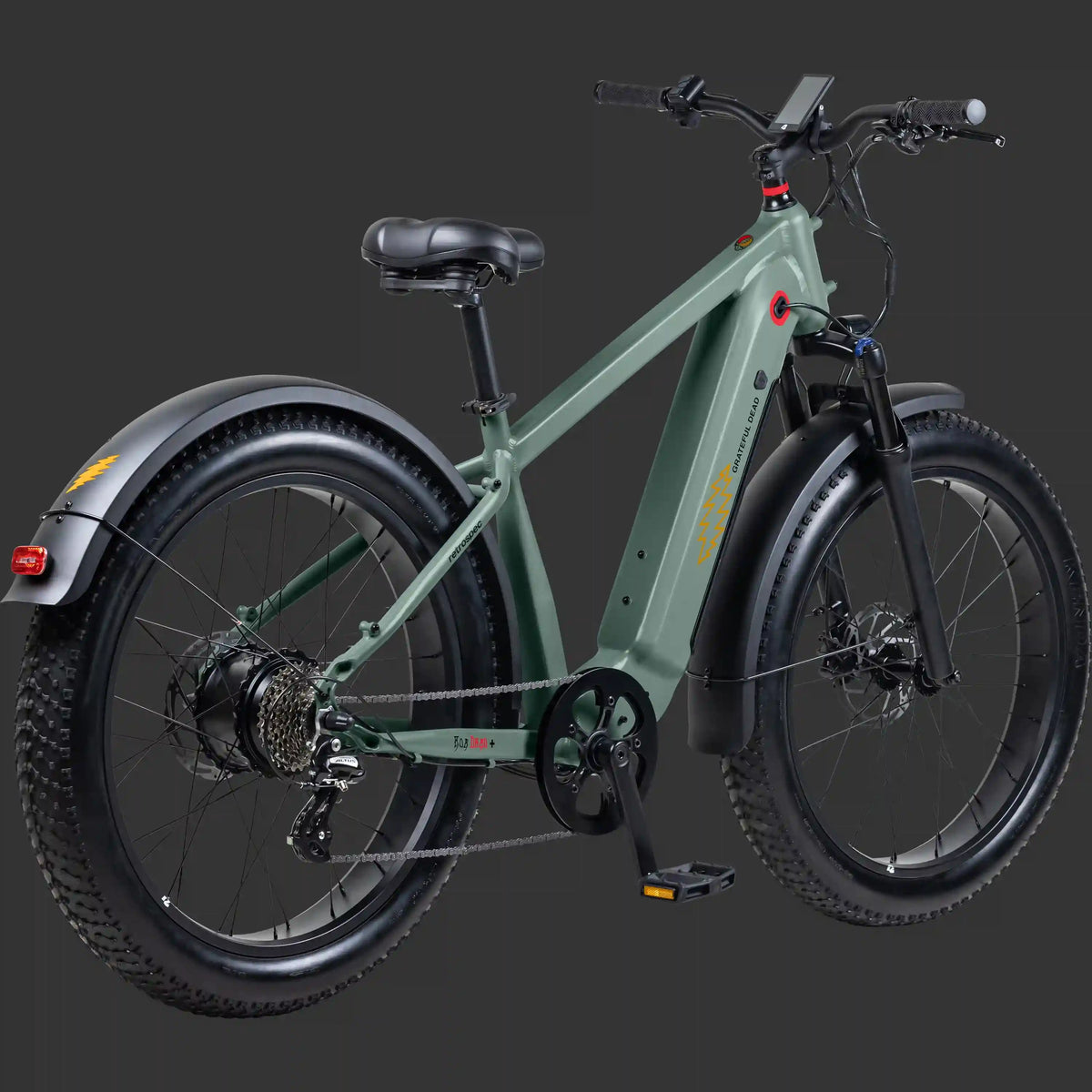

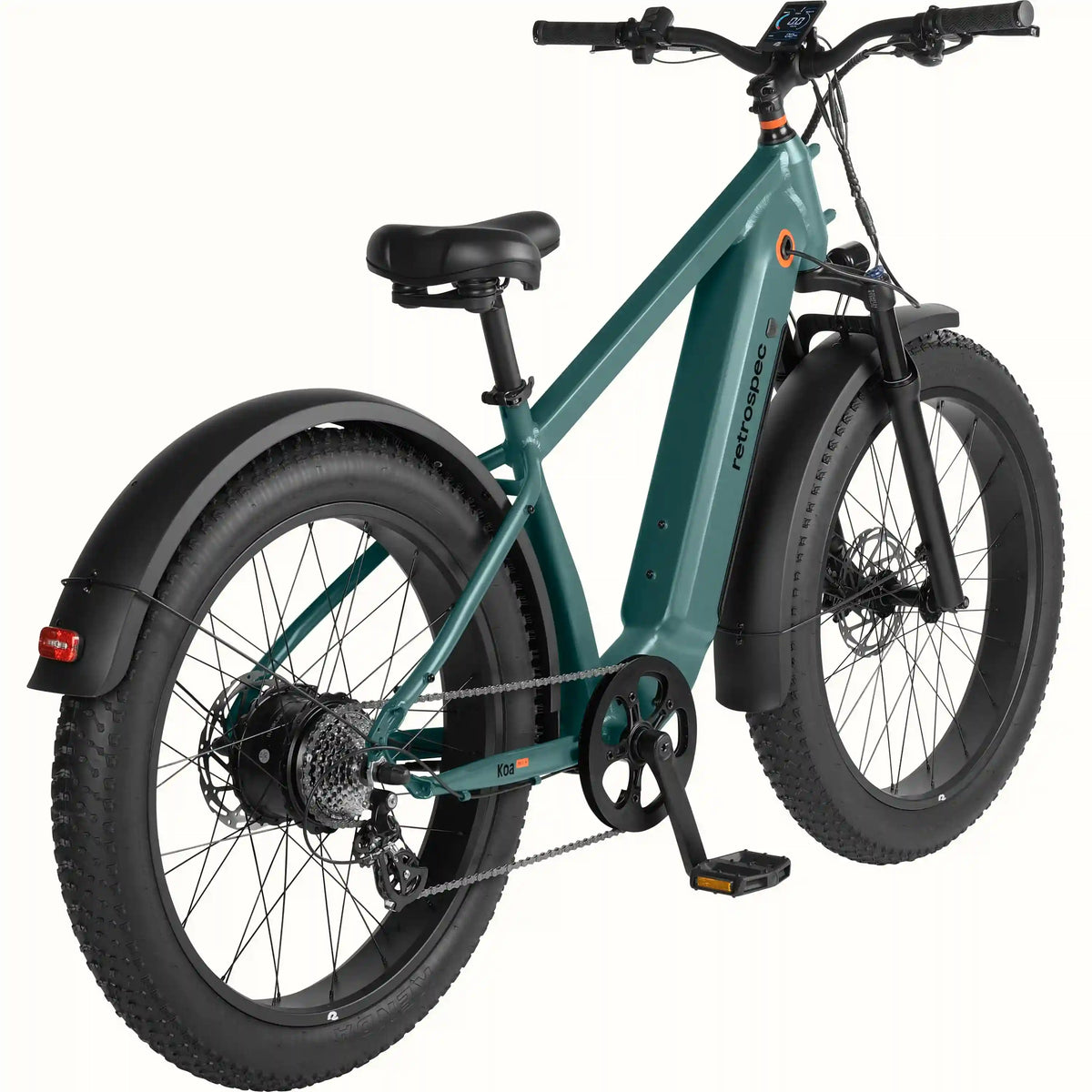

Koa Rev+ 2 Fat Tire Electric Bike
Guaranteed Safe Checkout
Koa Rev+ 2 Fat Tire Electric Bike
Frameset:
-
Sizes: 16.5" Step Through;
-
Material: Alloy, 6061 TIG welded, hydroformed tubing
- Dropouts:
- Decals:
- Replaceable Der Hanger
- Fork:
DriveTrain
- Derailleur - Rear: Shimano Altus 8speed
- Shifter: Shimano Rapidfire Plus
- Crankset: 46T w/double alloy chainguard
- Chain: KMC Z8.
- BB: JIS square taper cartridge
- Freewheel/Cog: Shimano 11-34T
Wheelset
- Rims: Alloy 36H for disc brake
- Hubs: Alloy bolt on 17mm nut
- Spokes: 13G/2.3mm w/brass nipples
- Tires: 26 x 4.0, with moto-belt anti-puncture protection
Components
- Headset: Threadless, 1 1/8"
- Brakes: Tektro hydraulic with ebike specific 180mm rotors and semi-metalic pads
- Handlebars: Alloy 700mm
- Grips: Comfort with alloy lock rings
- Stem: Die-Casting alloy; 31.8mm barbore, ext. 60mm +6d, 4-bolt faceplate
- Saddle: SuperSoft MTB
- Seatpost: Alloy; 30.9mm diameter, 400mm length
- Seatpost Clamp: Alloy QR
- Pedals: Alloy platform 9/16"
Extras
- Kickstand: Rear mount, adjustable, aluminum alloy
- Lights: Integrated/system-powered front and rear lights w/brake function
- Fenders: Full coverage front and rear
- Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Weight - Bike (Assembled w/battery): 71 lbs
- Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.
- Rover Compatible: Yes
E-Power System
- Motor: 750W geared
- Battery: 48V 720W LG 21700 cells
- Modes: PAS/Thumb throttle Left side , cadence sensor

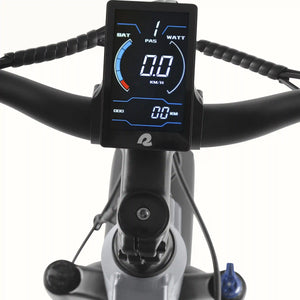

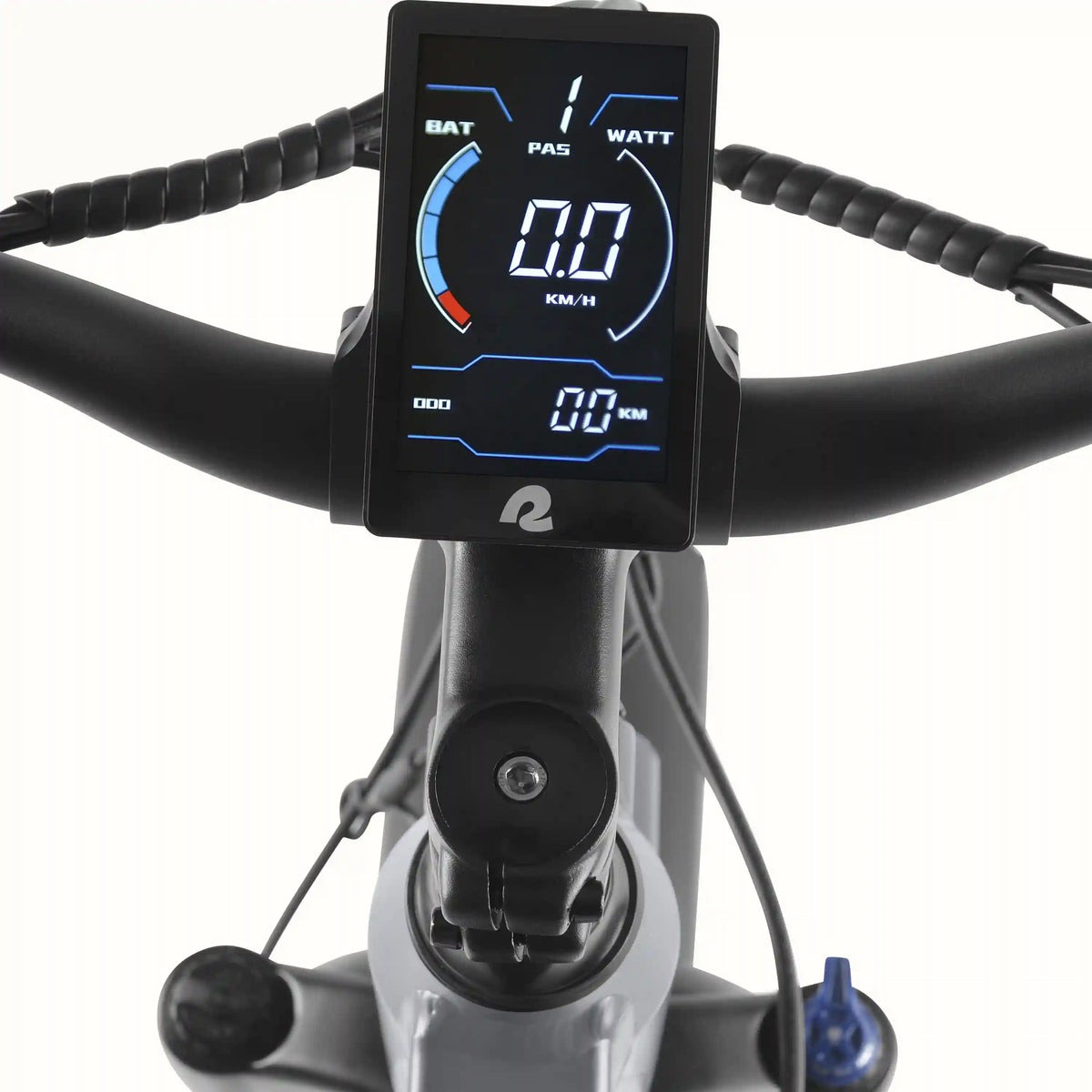

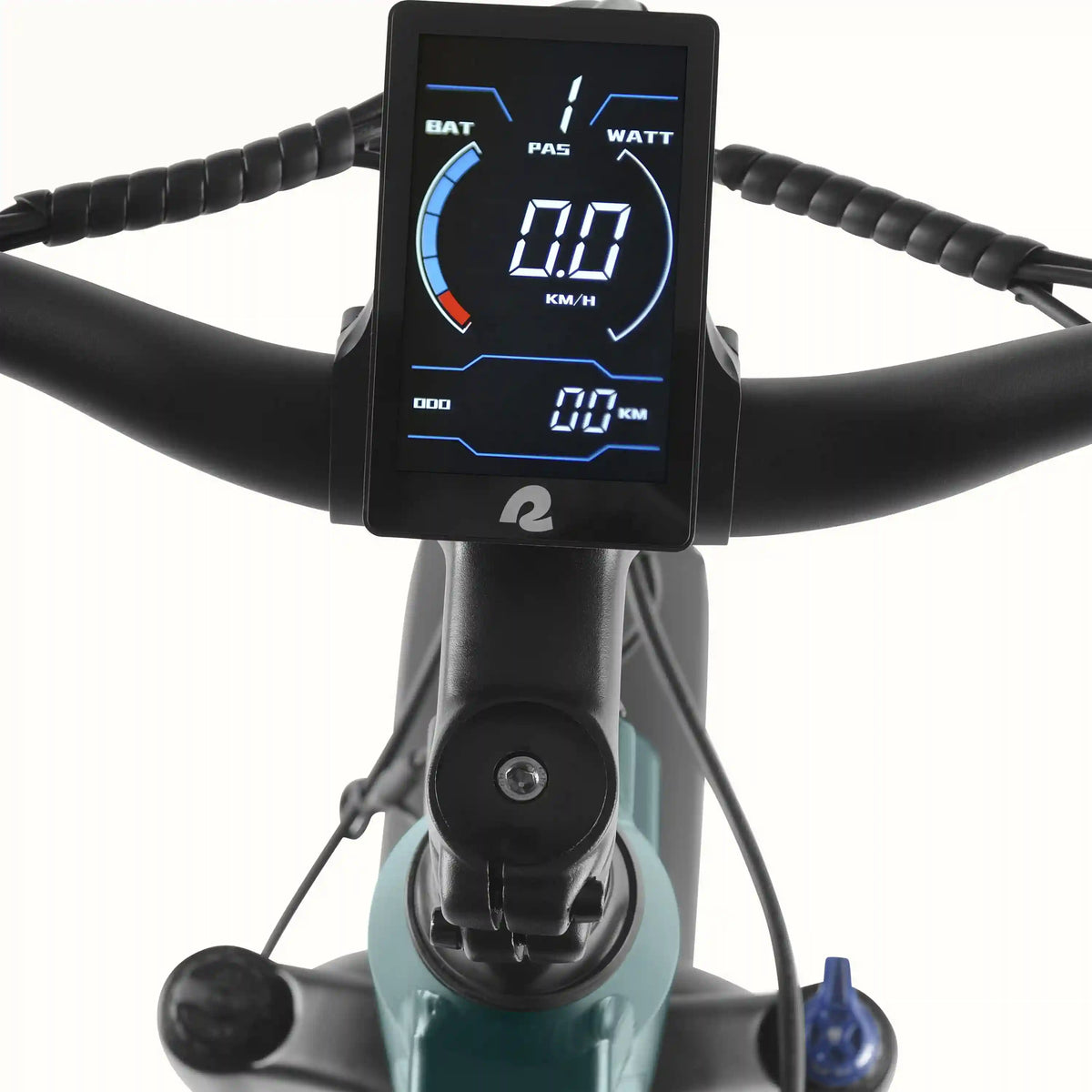

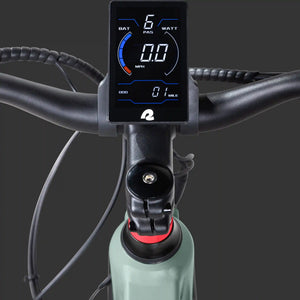

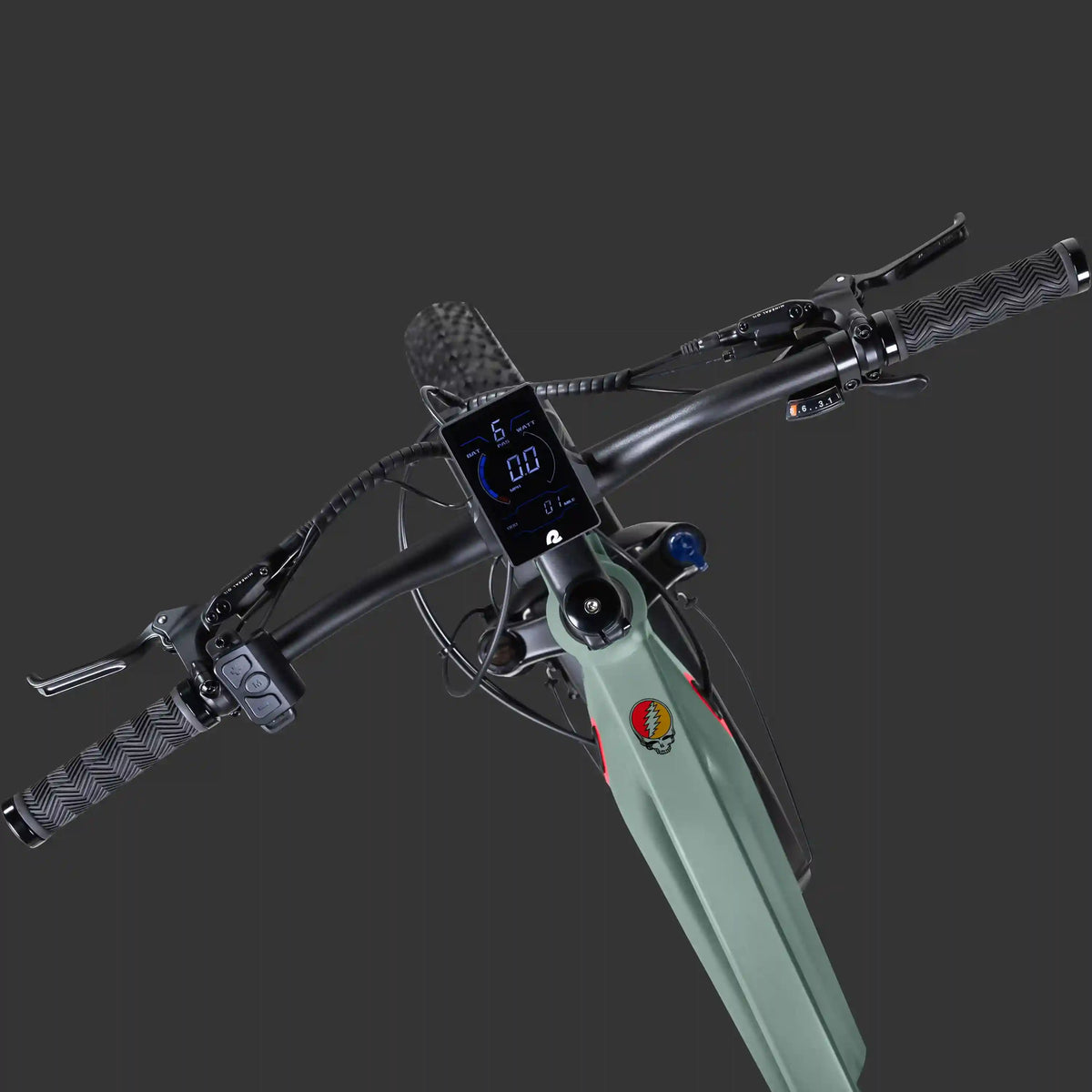

- Display: Full color display with 6 levels of assist, anytime throttle and walk mode.
- Controller: Retrospec 22Amp
- Charge Time: Approximately 6hrs
- Watt Hours: 720Wh
- Range: 720Wh: 50+ Miles
Class 2/3 Ebike
Up to 72-Mile Range
Torque Sensor for Smooth Pedal Assistance
Tektro Hydraulic Disc Brakes
48V/720Wh LG Li-Ion Battery
750W Planetary Geared Hub Motor
4” Puncture Protected Fat Tires
80mm Travel Suspension Fork
