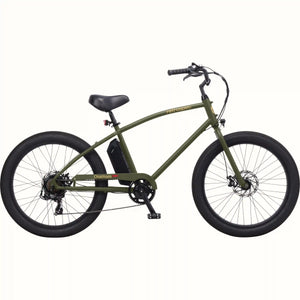

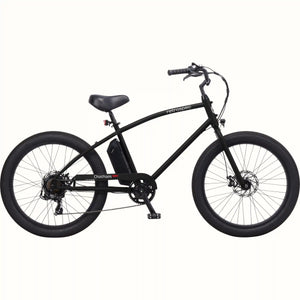

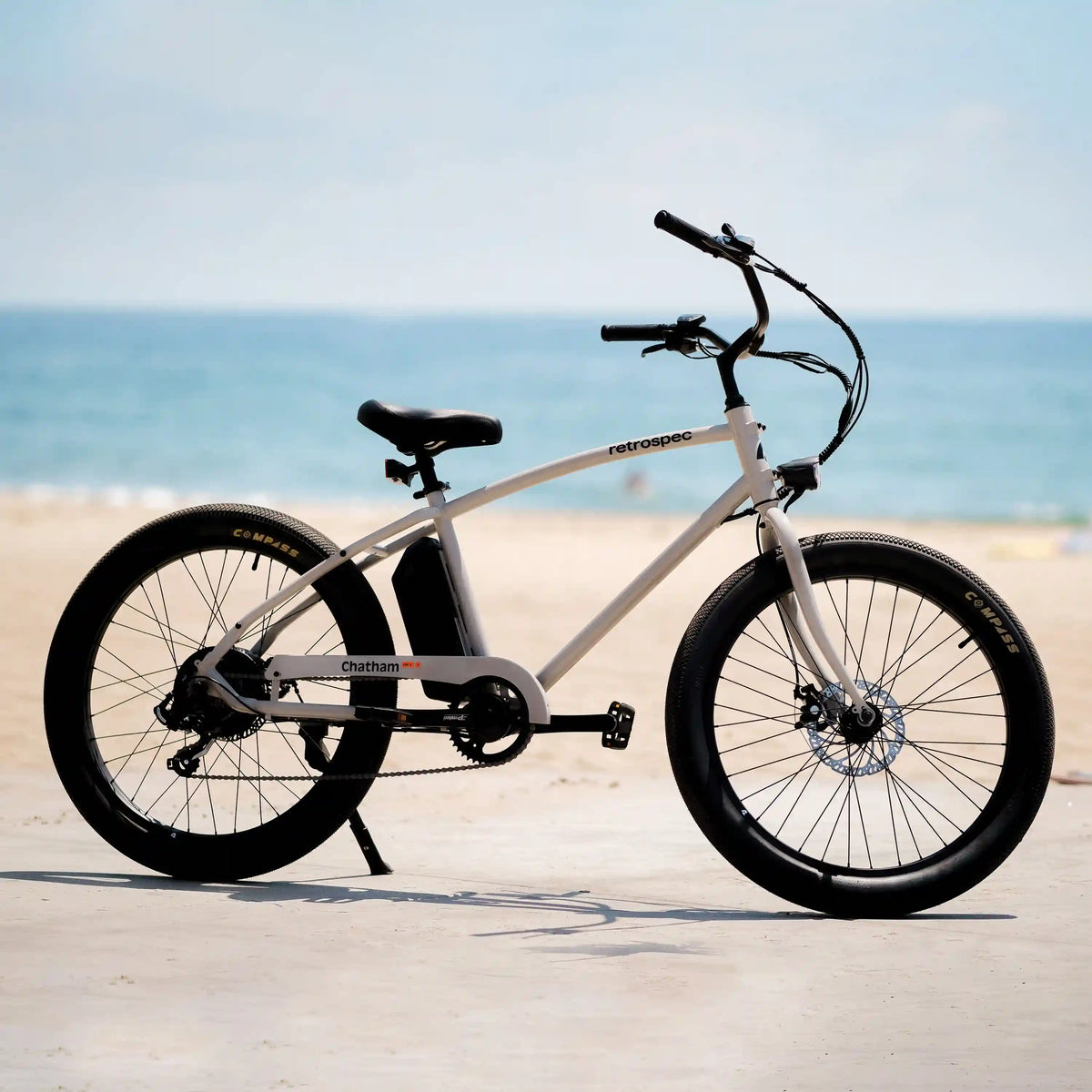

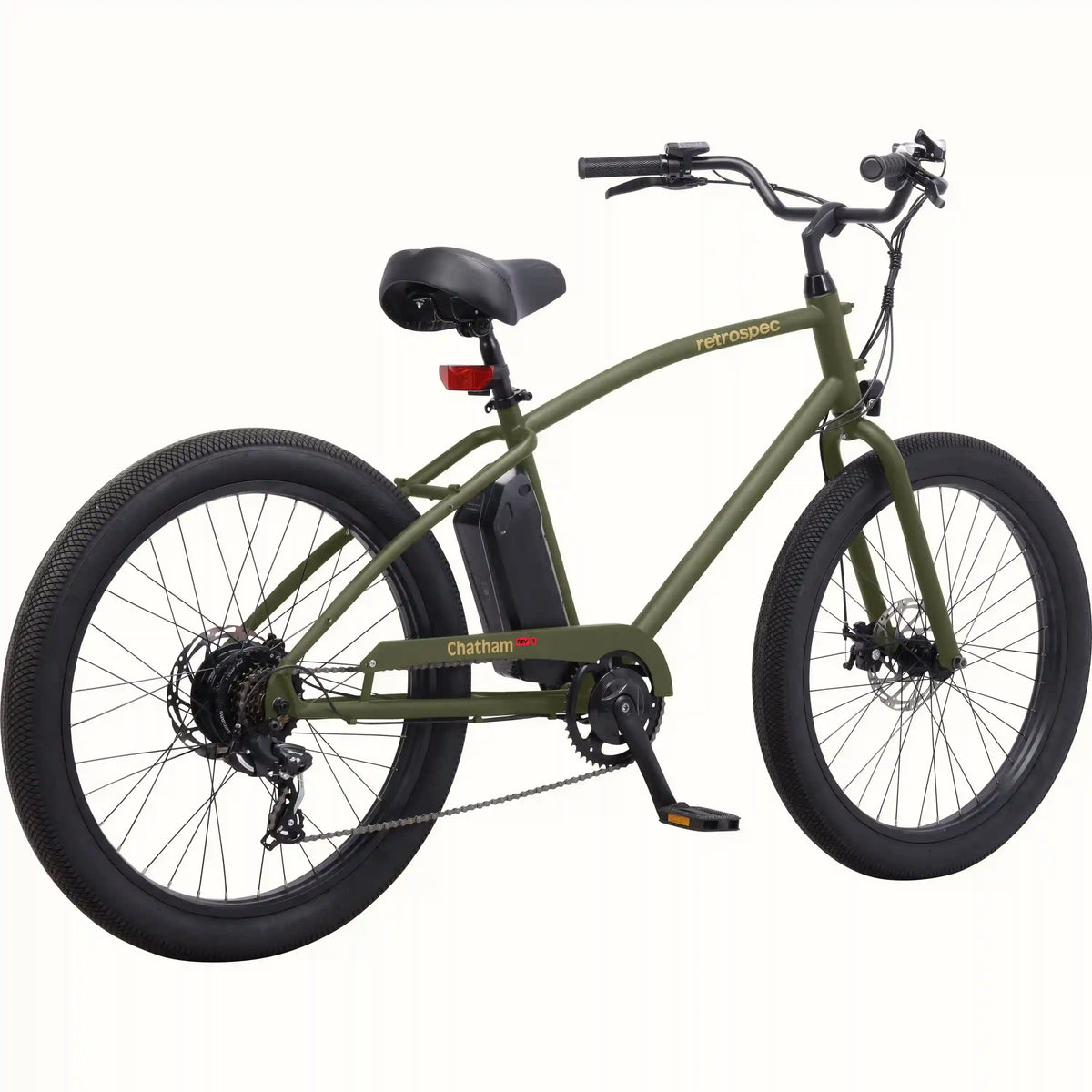

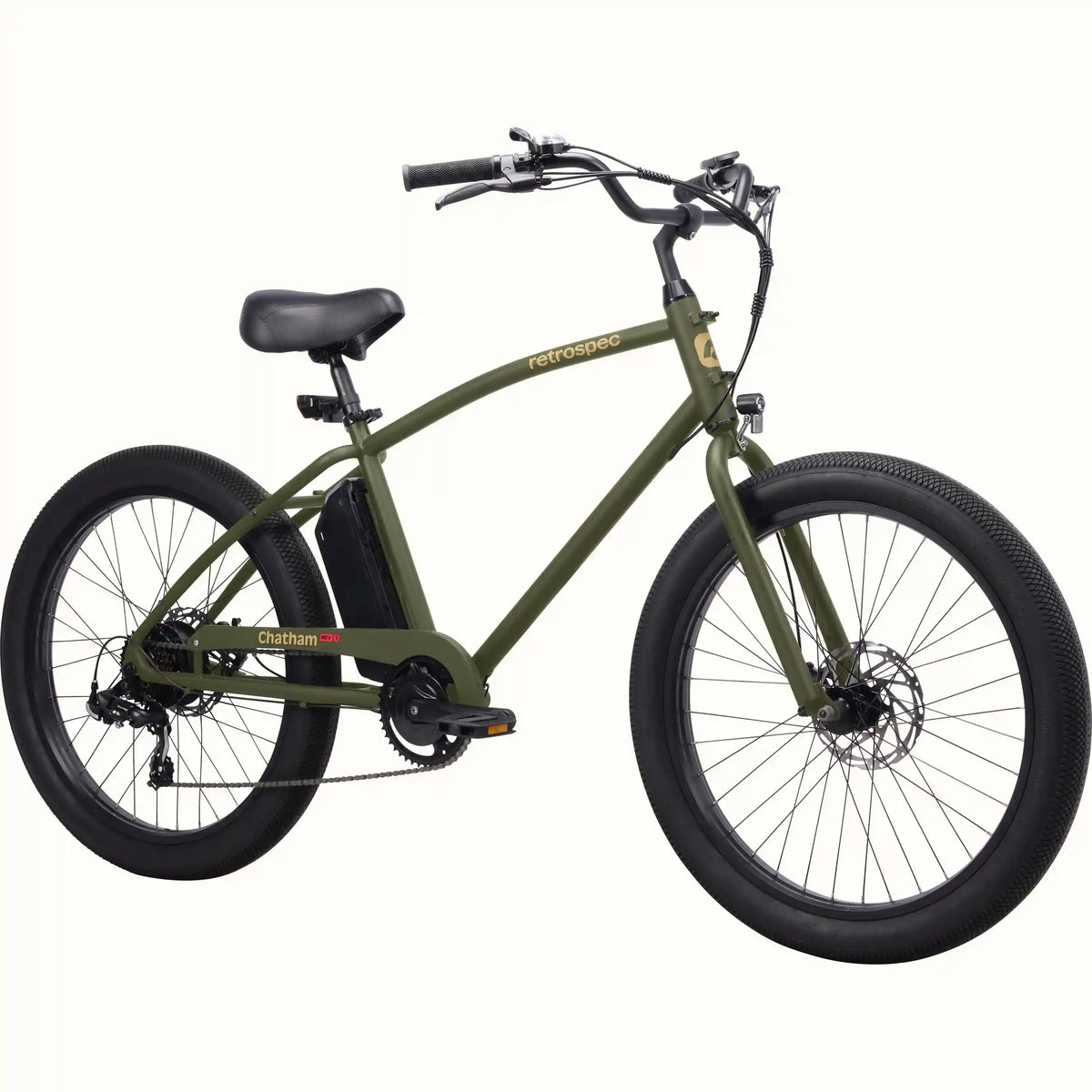

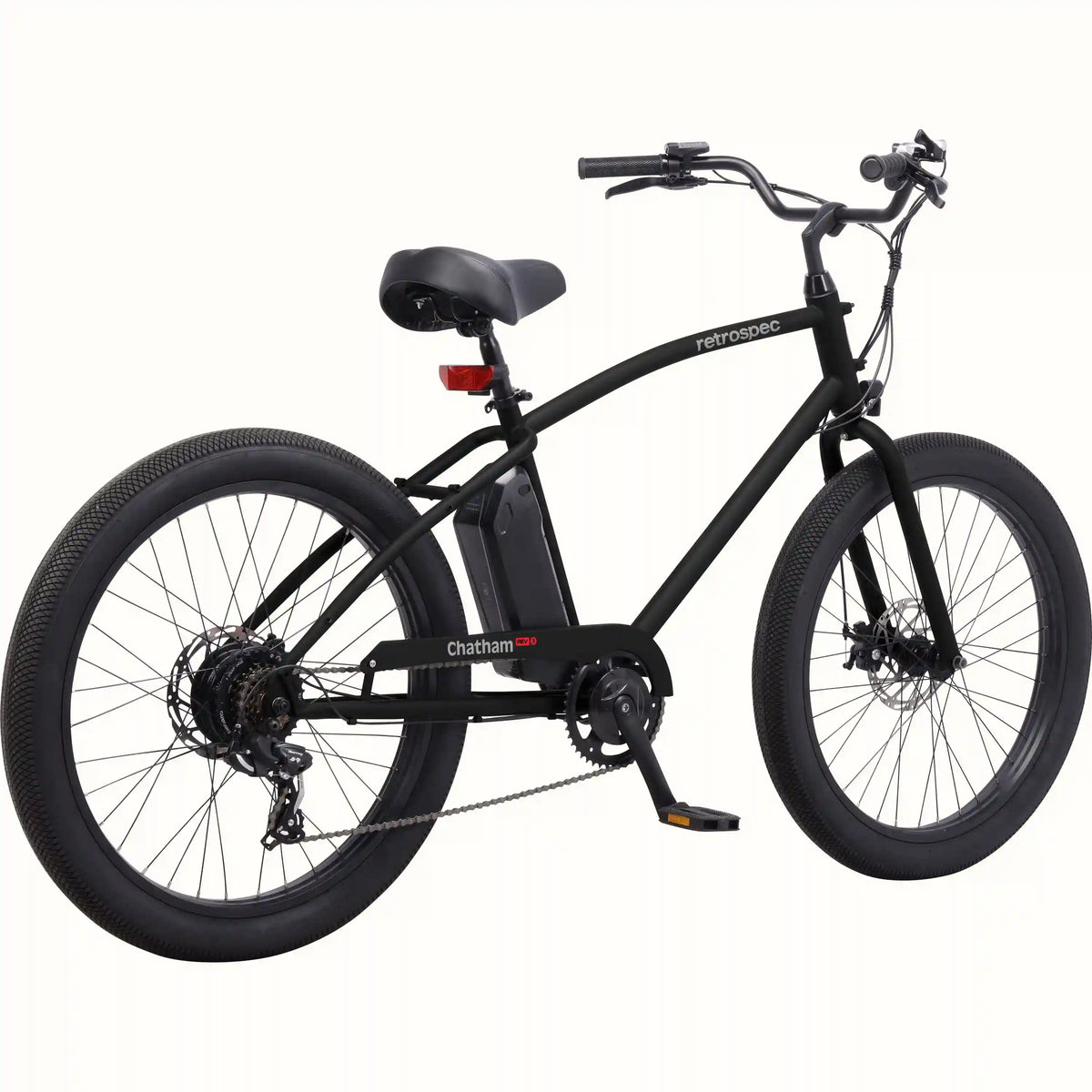

Chatham Rev 3 Beach Cruiser Electric Bike

Frameset:

Sizes: 18" Step Over

Material: Steel

Dropouts: 1x rear fender eyelets, rear rack mounts,

Decals

Fork: Steel

Drivetrain:

Derailleur - Rear: Shimano Tourney 7 speed

Shifter: Shimano Tourney 7 speed

Crankset: 42T alloy

Chain: KMC Z7

BB: JIS square taper cartridge

Freewheel/Cog: Shimano 14-34T

Wheelset:

Rims: Alloy 36H for disc brake

Hubs: Alloy bolt on 17mm nut

Spokes: 13G/2.3mm w/brass nipples

Tires: 26x3.0

Components:

Headset: Threaded 11/8"

Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston (QBP#BR7193). Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]

Handlebars: Alloy cruiser

Grips: Comfort with alloy lock rings

Stem: Alloy quill

Saddle: Comfort Cruiser

Seatpost: Aluminum 28.6mm diameter, 350mm length

Seatpost Clamp: Alloy QR

Pedals: PP Platform 9/16"

Extras:

Kickstand: Rear mount, adjustable, aluminum alloy

Axle (buddy) Pegs: n/a

Rear Carrier: n/a

Bell: n/a

Light(s): Battery operated front and rear lights

Fenders: n/a

Chaincover: Full Coverage

Basket: n/a

Bottle Cage: n/a

Tools: 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench

Carton

Weight - Bike (assembled w/battery): 59lbs.

Weight - Max Rider: 350lbs / 158kgs not including bike weight.

Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.

E-Power System:

Motor: 350W geared

Torque: 55Nm

Battery (w/key & slide in/out housing): 36V 360Wh

Charging Cycles: 500

Charger: Retrospec 2A

Modes: PAS/Thumb throttle Left side , cadence sensor

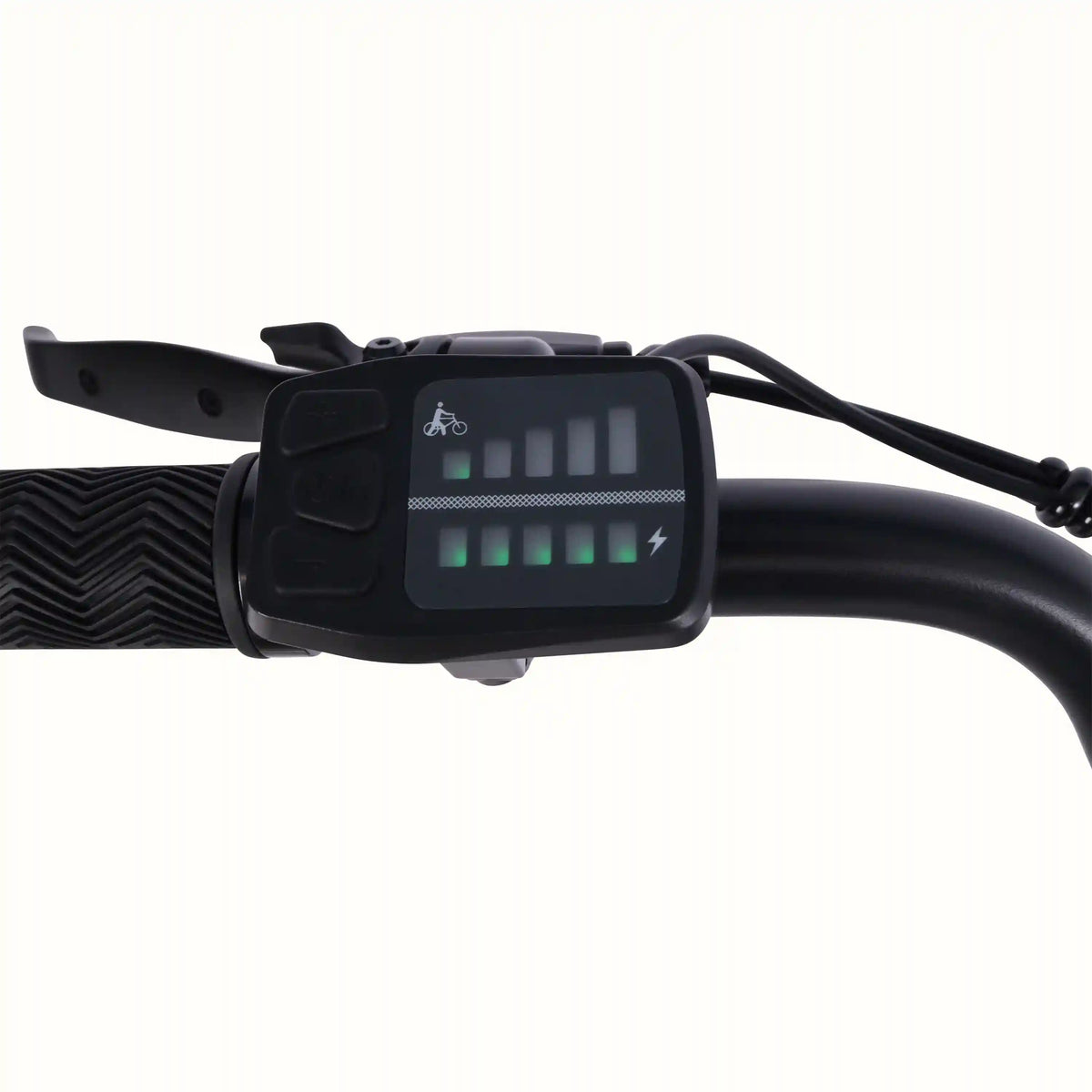

Display: LED with 5 levels of assist, anytime throttle and walk mode

Controller

Retrospec: 18Amp

Charge Time (empty to full, estimated, could be longer): Approximetly 4.5hrs.

Watt Hours (Wh): 360Wh

Range Conservative (@ 1mi = 20watt hours): 25+

Range - Miles: 360Wh: 38+
